Regular price $2,623.00

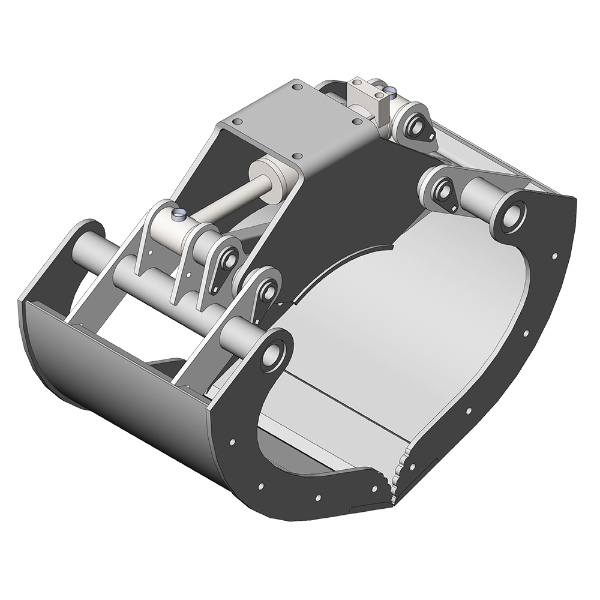

Clamshell bucket with horizontal cylinder and optional sidewalls for loading and unloading of light weight material.

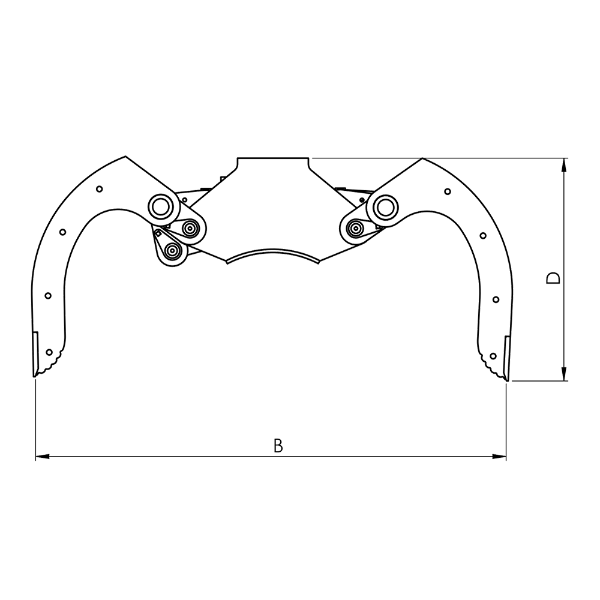

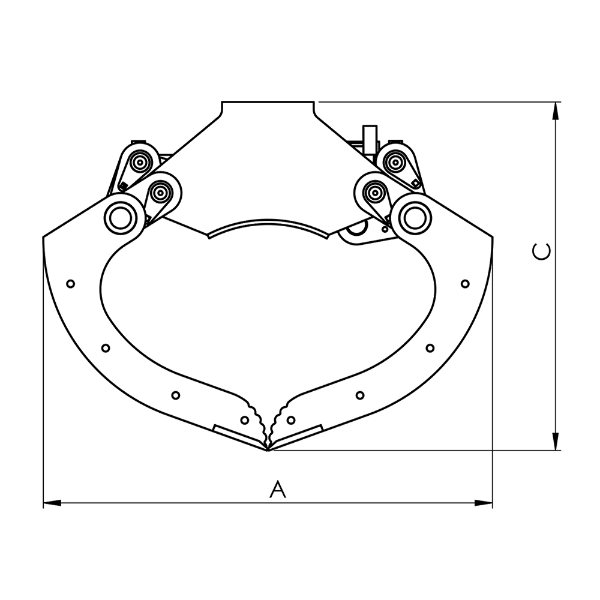

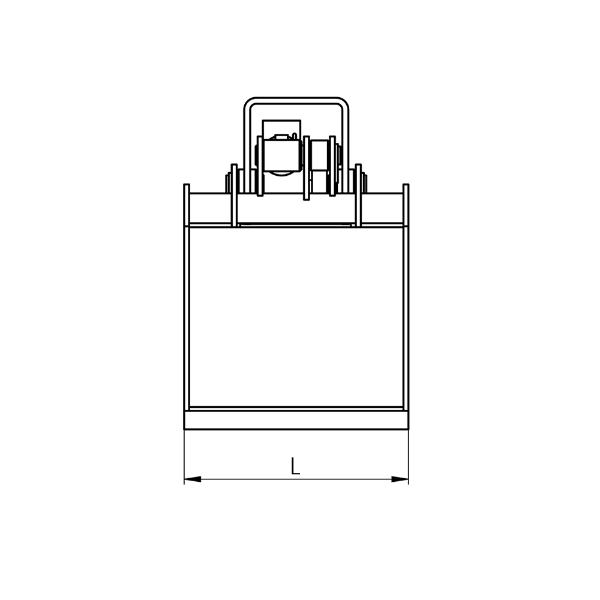

Measure CLA-MR 50 CLA-MR 125
Weight lbs 112 313
Capacity lt-gal 50- 13.21 155- 40.95
Max Pressure psi 2900 2900
A inches 24.6 33.0
B inches 35.2 47.2
C inches 19.3 25.9
D inches 15.3 20.5
L inches 12.9 21.6



 Measure CLA-MR 205 CLA-MR 320 CLA-MR 400
Weight lbs 352 456 507
Capacity lt-gal 205- 54.16 320- 84.54 400- 105.67
Max Pressure psi 2900 2900 2900
A inches 33.0 40.9 40.9
B inches 47.2 56.3 56.3
C inches 25.9 30.7 30.7
D inches 20.5 22.2 22.2
L inches 29.5 31.5 19.3
