Clamshell bucket with horizontal cylinder for loading and unloading of light weight material.
| Measure |
CLA-L 50 |
CLA-L 125 |
| Weight lbs |
110 |
286 |
| Capacity lt-gal |
50- 13.21 |
125- 33.02 |
| Max Pressure psi |
2900 |
2900 |

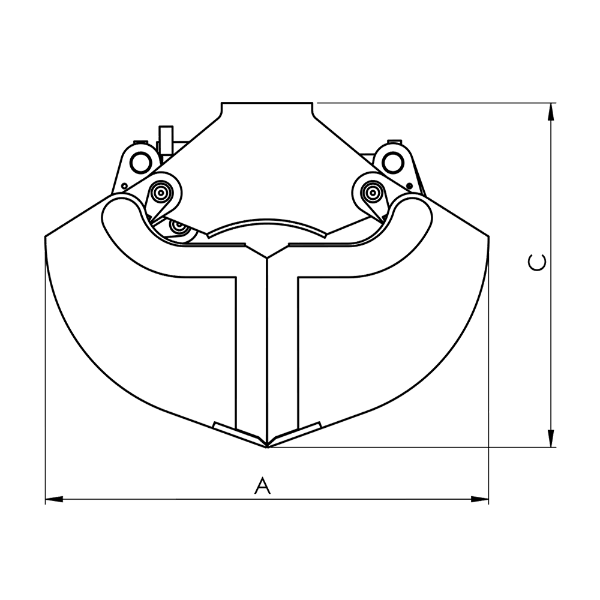

| A inches |
24.6 |
33.0 |
| B inches |
35.2 |
47.2 |
| C inches |
19.3 |
25.9 |
| D inches |
15.3 |
20.5 |

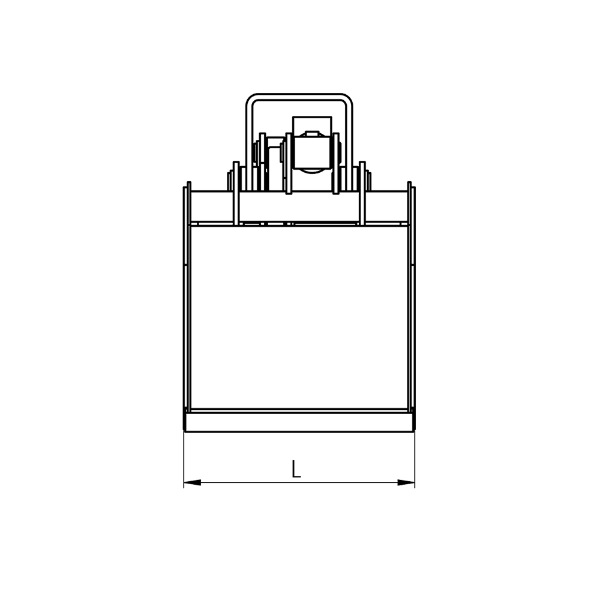

| L inches |
12.9 |
17.7 |
| Rotator Recommendation |
R3C |
R3C |
| Measure |
CLA-L 205 |
CLA-L 320 |
CLA-L 400 |
| Weight lbs |
352 |
451 |
507 |
| Capacity lt-gal |
205- 54.16 |
320- 84.54 |
400- 105.67 |
| Max Pressure psi |
2900 |
2900 |
2900 |
| A inches |
33.0 |
40.9 |
40.9 |
| B inches |
47.2 |
56.3 |
56.3 |
| C inches |
25.9 |
30.7 |
30.7 |
| D inches |
20.5 |
22.2 |
22.2 |
| L inches |
29.5 |
31.5 |
19.3 |
| Rotator Rec |
R3C |
R5CFS |
R5CFS |
